Installation

This guide will help you install SlicerCART and set up your environment.

Prerequisites

3D Slicer

SlicerCART is a module for 3D Slicer. You need to have 3D Slicer installed on your system:

• Download 3D Slicer from the official website (version 5.8.1 on macOS is recommended)

• Launch 3D Slicer to verify the installation

Installation

1. Get Access to SlicerCART repository

   • Download SlicerCART repository as a ZIP file, and extract the folder to your choice location

   OR

   • Clone the repository to the location of your choice:

     # Clone the repository
     git clone https://github.com/neuropoly/slicercart.git


2. Get Access to SlicerCART in 3D Slicer

   • Open 3D Slicer

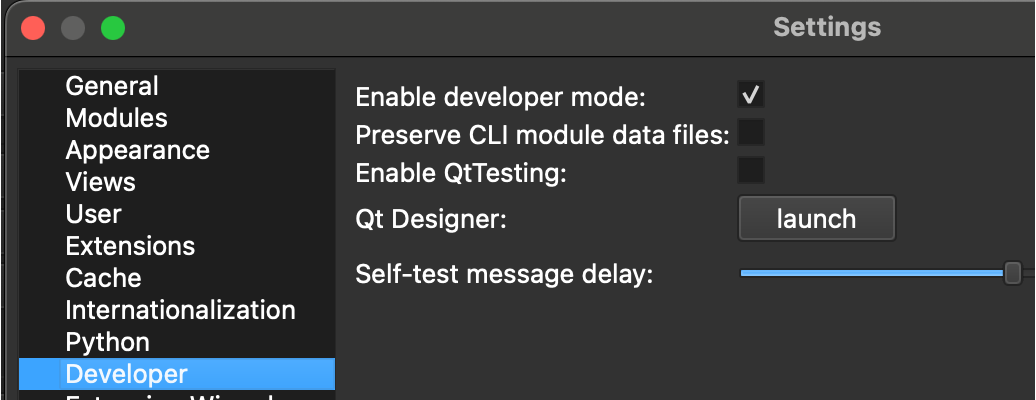

   • Go to Edit -> Application Settings -> Developer. Check Enable developer mode



   • Go to Edit -> Application Settings -> Modules

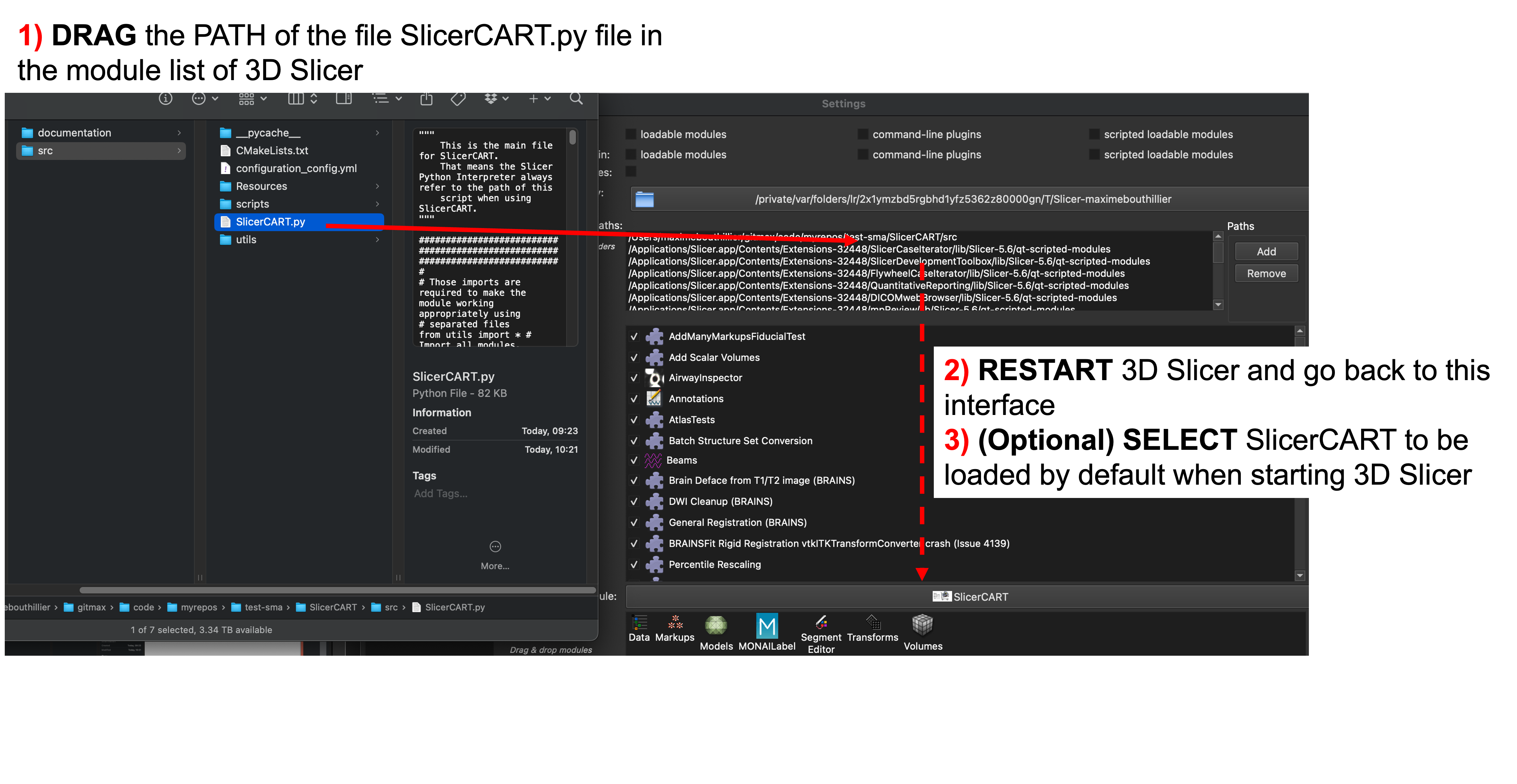

     • Go to the location of the python file <PATH_TO_REPOSITORY>/slicercart/SlicerCART/src/SlicerCART.py

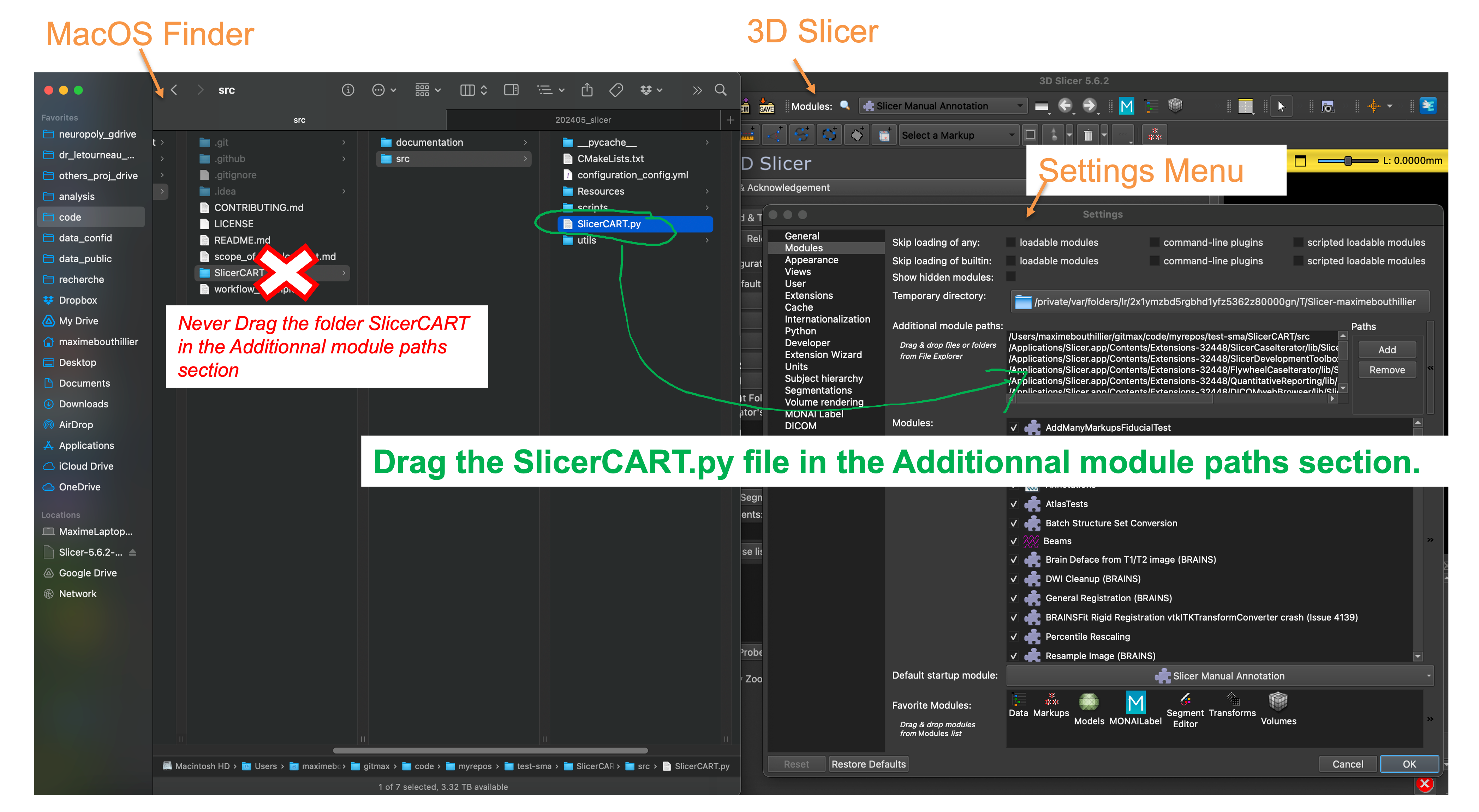

     • Drag/Drop the file SlicerCART.py in the Additional module paths list.



   • Click “OK”. 3D Slicer will ask to Restart: click “Yes”.

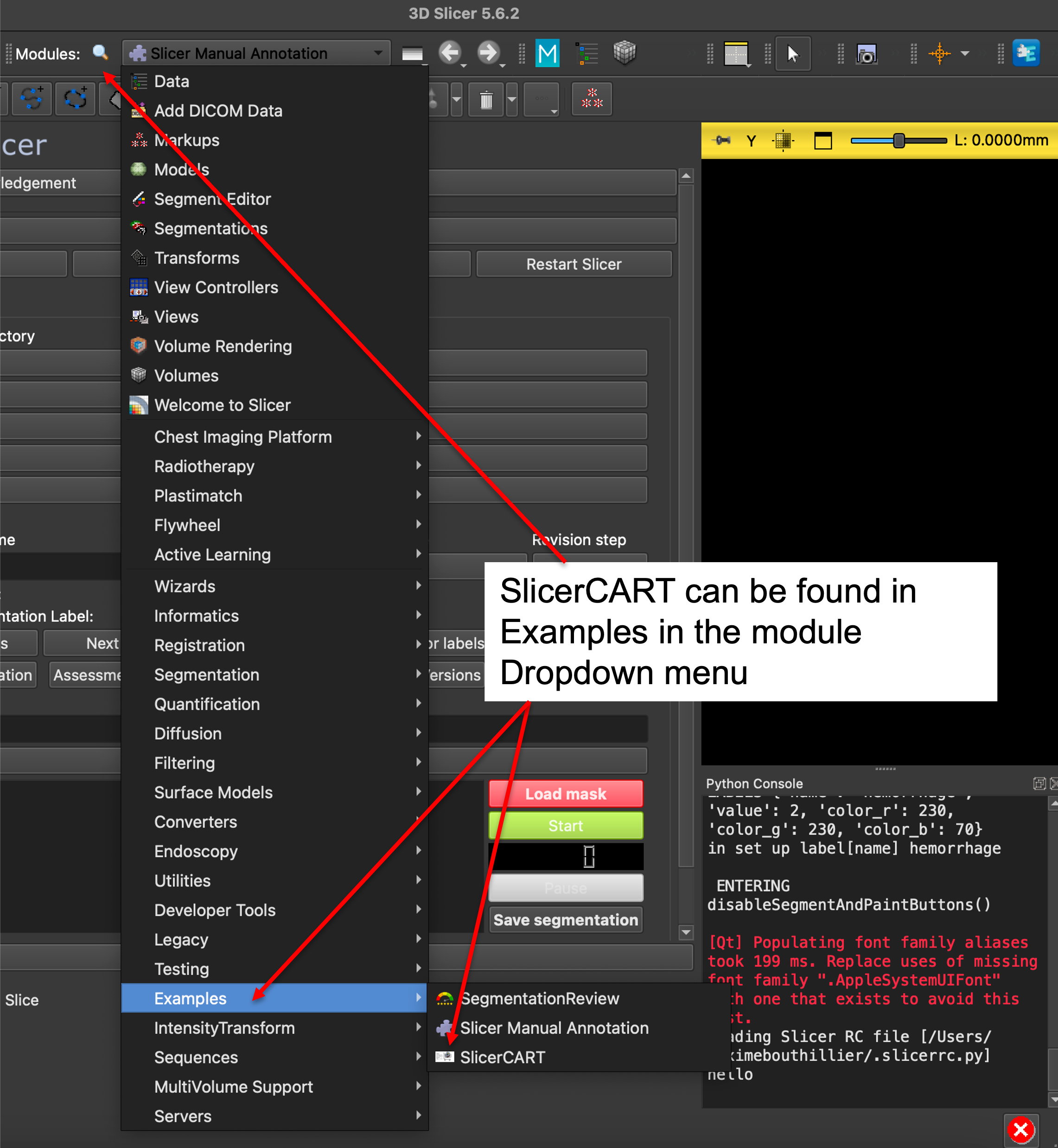

   • Go to Modules Drop Down -> Examples -> SlicerCART



   • (Optional) Ensure SlicerCART is launched at 3D Slicer startup.

     • To do so, go to Edit -> Application Settings -> Modules -> Default startup module

N.B. There might be errors in the Python Console: if so, it is highly recommended for you to fix them before any further use.

Verification

To verify that SlicerCART is installed correctly:

1. Launch 3D Slicer

2. Go to Modules dropdown menu

3. Look for “SlicerCART” in the list

4. Click on SlicerCART to open the module

5. The module interface should appear in the main panel

Troubleshooting

Common Issues

1. Module Not Found

   • Verify that 3D Slicer is properly installed

   • Check if the module path is correctly set

   • Try restarting 3D Slicer

2. Version Compatibility

   • Ensure you’re using a compatible version of 3D Slicer (e.g. 5.6.2)

   • Ensure you’re using a compatible operating system (e.g. mac OS)

Getting Help

If you encounter issues:

• Check our GitHub Issues

• Create a new issue with detailed information about your problem

• Contact the development team
